VIDEO BALLUN 4 CHANNEL
VIDEO BALLUN 4 CHANNEL
- HD-CVI / TVI / AHD/ CVBS Passive Video & Audio Connector & Power Balun. Easy installation, using the standard UTP cable system and low voltage power supply;the longest run color was about 1000 feet HD transmitter.

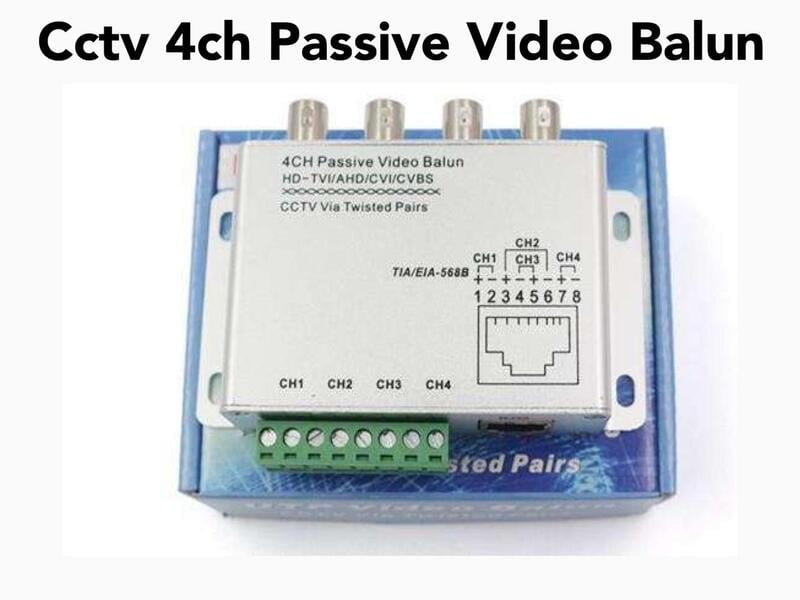

- The 4/8 channel HD transceiver box, it converts 4 coax lines, BNC jacks, to a screw terminal block and/or 1 RJ45 jack, built-in transient suppression protection.
- Maximum Support Pixel: 1080P(compatible 720P)
- Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5/Cat-6 un-shielded twisted pair wire can simultaneously transmit four channels of video signal.
- BNC Male Impedance: 75ohms,UTP Cable Impedance:100ohms;Resolution: 720P/1080P; No power required, Built-in transient suppression protection;
